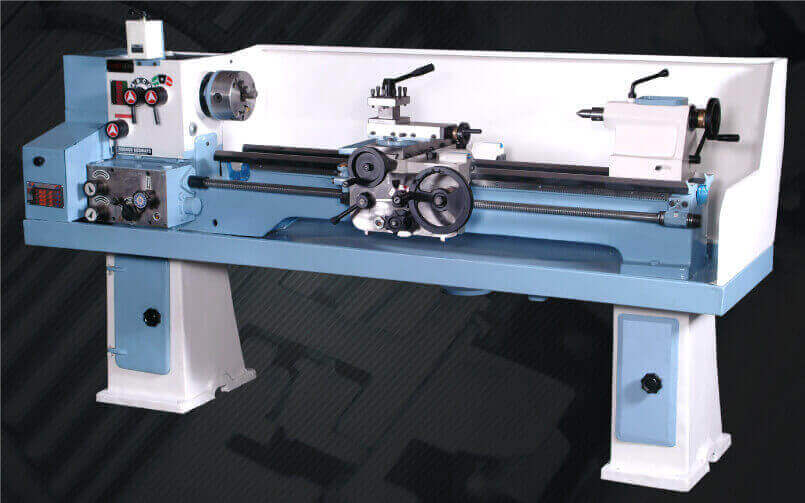

LX 165 All Geared Head Lathe Machine

Send Inquiry

Special Feature
- Bed is made from25 grade cast iron of 180 BHN hardness, strictly inspected with microlevel, hardness tester and straight edge.
- Boring of head stock is done on WMW boring machine fitted with induction hardened and ground spindle made from alloy steel.
- Fitted with induction hardened and ground spindle made from alloy steel. With external and internal grinding.
- Single screw apron is totally enclosed in oil bath system with lever type arrangement for automatic feeds and fitted with gear made from 25 grade Cast Iron.
- All the gear in head strock are made from En-8 and with high range of speed. (Nitriding gear)
- Hanging panel board has been provided with R-F/Stop/Inching facility. (If ordered)
- Parts & Instruction Manual as per Indian Standard IS – 1878 (Part-1) 1993.
Colour Options
- Blue & White (Two Tone)
- Bayer Blue & Silver Grey (Two Tone)
Standard Accessories
- Norton Gear Box (Single Screw)
- Electric Motor (2 HP, 3PH. 1440 rpm)
- R-F switch with electricals
- Rear Splash guard
- Chuck Plate
- Tool Post Key
- Centre Adaptor
- Dead Centre (2 Nos.)
- V-Belt Set for Motor
- Motor Pulley
- Four Position Tool Post
Extra Features
- Dog or True Chuck
- Coolant Pump, Tank & Nozzle
- Quick Change Tool Post with tool holders
- Rear Tool Post with long cross slide
- Taper Turning Attachment
- Steady Rest
- Follow Rest
- Face Plate
- Chuck Plate
Special Requirement
- Box Type Fabrication
- Any Special Requirement as per Customer’s Drawing.

Technical Data

Specification	165 / LX -1	165 / LX -2	165 / LX -3
Bed:
Bed Type	2 V & 2F	2 V & 2F	2 V & 2F
Bed Length	1375 (4′ 6″)	1600 (5′-3″)	1825 (6′)
Bed Width	240 mm (9.½”)	240 mm (9.½”)	240 mm (9.½”)
Gap Length	110 mm	110 mm	110 mm
Capacity:
Height Of Centre	165 mm (6.5″)	165 mm (6.5″)	165 mm (6.5″)
Swing over Bed	320 mm	320 mm	320 mm
Swing Gap	510 mm	510 mm	510 mm
Swing over Cross Slide	180 mm	180 mm	180 mm
Admit Between Centre	700 mm	930 mm	1160 mm
Movement of Cross Slide	200 mm	200 mm	200 mm
Movement of Compound Slide	115 mm	115 mm	115 mm
Main Spindle:
Spindle Nose (Threaded Type)	Ø 62 mm	Ø 62 mm	Ø 62 mm
Taper Bore in Spindle Sleeve	MT-3	MT-3	MT-3
Spindle Bore	Ø 40 mm	Ø 40 mm	Ø 40 mm
Tail Stock:
Quill Dia	Ø 38.1 mm	Ø 38.1 mm	Ø 38.1 mm
Taper in Quill	MT-3	MT-3	MT-3
Quill Travel	120 mm	120 mm	120 mm
Speed:
No. of Spindle Speed	8	8	8
RPM (Low/High)	76-725	76-725	76-725
Feed:
No. of feeds range	56	56	56
Longitudinal/Rev.	0.057 to 1.012 mm	0.057 to 1.012 mm	0.057 to 1.012 mm
Transverse/Rev.	0.010 to 0.184 mm	0.010 to 0.184 mm	0.010 to 0.184 mm
Threads:
Metric Thread	20 (0.5 to 7.5 mm)	20 (0.5 to 7.5 mm)	20 (0.5 to 7.5 mm)
English Thread	36 (4 to 60 TPI)	36 (4 to 60 TPI)	36 (4 to 60 TPI)
Lead Screw	Ø 1″ x 4 TPI	Ø 1″ x 4 TPI	Ø 1″ x 4 TPI
Electricals:
Motor Power	2 H.P. / 1.5 KW	2 H.P. / 1.5 KW	2 H.P. / 1.5 KW
Drive:
V Belt	B-42	B-42	B-42
General:
Weight (Approx.)	500 Kg.	575 Kg.	650 Kg.
Floor Space Occupied in (mm)	1600 x 700	1900 x 700	2125 x 700
(Approx.)L x W x H	x 1370	x 1370	x 1370
