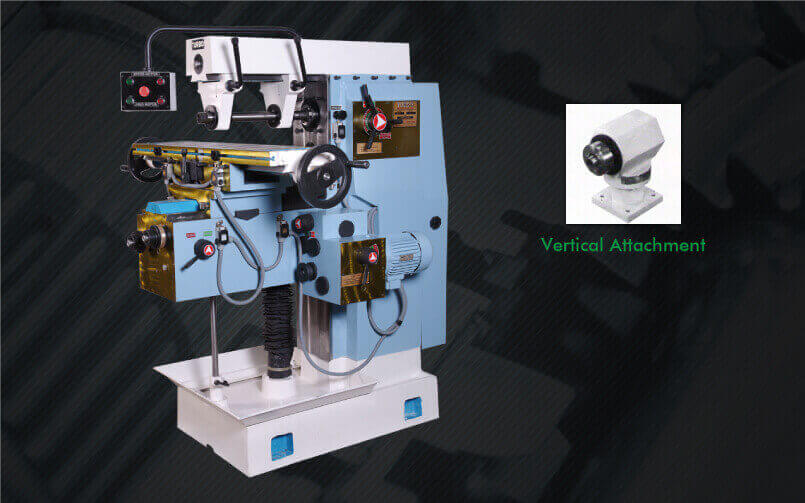

Universal Horizontal Fully Automatic Milling Machine AG-2

Send Inquiry

Special Feature
- Outstanding sturdiness and rigidity of machine
- The accuracy can be maintained under heavy cutting
- Convenient design
- Boring of body is done on WMW boring machine
- All the three axis (x , y & z) travel provides return stroke four times faster than the forward stroke
- Long longitudinal and transverse travel of slides
- Fully electric control by hanging panel board
- Limit switch and spindle lock are provided to prevent accident
- All gears are made from alloy steel and nitriding process done on them
- Heavy base provided with inbuilt coolant tank
- Instruction manual as per Indian standard IS 2200 – 1973
Colour Options
- Blue & White (Two Tone)
- Bayer Blue & Silver Gray (Two Tone)
Standard Accessories
- Hardened and Ground arbour with stud and collars
- Electric Panel board (Hanging type)
- Limit switches
- Operating Handle
- Motor pulley
- Electric Motor 3 phase, 2HP, 1440 rpm with V-Belt Set
- Electric Motor 3 phase, 1.5HP, 960 rpm
Extra Accessories
- Vertical attachment
- Dividing head
- Universal machine vice
- Coolant pump and nozzle
Special Requirement
- Various speed range or spindle, various feed range and special arbor of larger diameter for extra heavy duty milling machine as per the customer’s requirement.

Technical Data

Specification	AG – 2
Table:
Table Length x Width	1000 mm x 280 mm
Clamping Area	925 mm x 280 mm
‘T’-Slot Number	3
Centre Distance	70 mm
Size (Width)	18 mm
Axes Travel:
Longitudinal Travel	700 mm
Vertical Travel	440 mm
Vertical Travel After Mounting Vertical Attachment	325 mm
Transverse Travel	280 mm
Feed:
No. of Feeds	6
Range of Feeds	Forward	Reverse (Repid)
x-Axis (Min/min)	45/75/100	180/300/400
x-Axis (Min/min)	18/30/40	92/150/205
z-Axis (up)	5/1/10 mm/min
x-Axis (Down)	23/37/51 mm/min
Main Spindle:
Spindle Nose Taper	ISO 40
No. of Speeds	8
Speeds Range	45 – 830 rpm
Spindle bore	Ø 22 mm
Arbor Dia.	Ø 25.4 mm
Power:
Main Motor	2 HP / 1440 rpm
Feed Box Motor	1.5 Hp / 960 rpm
Working Range:
Swivel of Table	+ 45 Degree
Distance between spindle axis to table surface	440 mm
Distance of spindle axis to bottom surface of over arm	135 mm
Coolant Tank Capacity	15 Litres
General:
Weight (Approx.)	1600 Kg
Floor Space Occupied in (mm)	1100 x 600 x 1660
